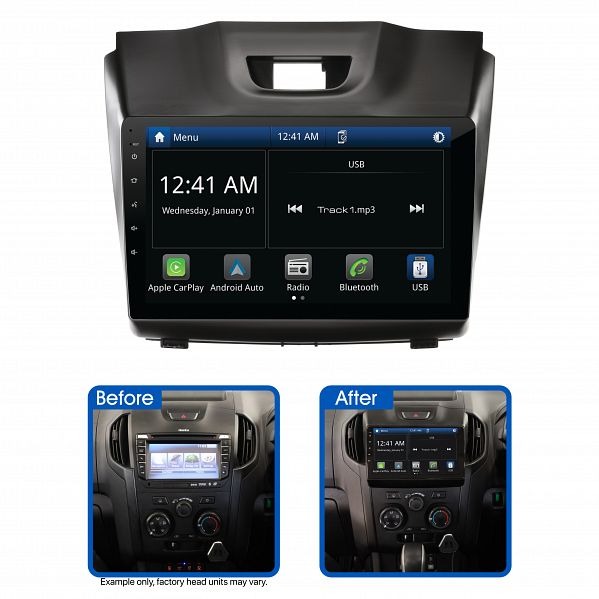

Aerpro AMAIZ1B 9" Multimedia Receiver Suit Holden and Isuzu Various Models

Built-In Bluetooth For Hands-Free Phone Calls & Wireless Audio Streaming!

9" Multimedia Receiver With Wireless Apple CarPlay & Android Auto The Aerpro AMAIZ1B 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto suits Holden Colorado (inc.7) (2012-2014), Isuzu D-Max (2012-2020) and Isuzu MU-X (2013-2017) vehicles. Featuring a large 9" capacitive touchscreen display, this Multimedia Receiver has Apple CarPlay and Android Auto which can be used wireless or wired, built-in Bluetooth for hands-free phone calls & wireless audio streaming, dual rear USB inputs as well as an AM/FM radio tuner. Sound quality is superb with 50Wx4 max output, 8 band graphic EQ and time alignment capabilities, amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMAIZ1B includes all the parts required to complete the installation and retains important vehicle features including steering wheel controls and the factory reverse camera (if equipped).

Important Information:

• Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
• Suits Isuzu D-Max and MU-X vehicles with the following OEM head units: Fujitsu 10 (with or without screen), Panasonic, Clarion CX-501 & Clarion Navigation.
• Not compatible with Holden Mylink Systems.
• For vehicles without a screen from factory there may not be a park brake wire.
• Reverse Camera Retention uses the reverse camera input of the head unit.
• USB Port can be retained (if equipped), optional USB Retention Adaptor Required APIZUSB1 (sold separately). Connects to the rear USB input on the Multimedia Receiver.

Vehicle Feature Retention:

• Steering Wheel Controls: Yes (including phone button)
• Factory Reverse Camera: Yes (if equipped)
• AUX Input: N/A
• USB Input: Optional (APIZUSB1 required, sold separately)
• Parking Tones: N/A
• Factory Amplifier: N/A
• Vehicle Menu: N/A
• Other: N/A

Key Features:

• To suit Holden Colorado (inc.7) (2012-2014), Isuzu D-Max (2012-2020) and Isuzu MU-X (2013-2017)
• Includes all the parts required to complete the installation and to retain important vehicle features
• Apple CarPlay & Android Auto (wireless / wired)
• Large 9" capacitive touchscreen display
• Steering wheel control (including phone button) and factory reverse camera retention (if equipped)
• Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
• AM / FM Tuner with RDS & presets (18FM/12AM)
• Dual rear USB inputs (1.5A max charging)
• Dual camera inputs (AHD 720P compatible) & rear A/V input
• 50Wx4 Max with 8 band graphic EQ and time alignment capabilities
• 4V/5CH RCA Preout and subwoofer level control
• Includes Adapter harness to suit plug found in base model vehicles (Clarion / Fujitsu 10 non screen models)

Specifications:

• LCD Display: Size: 9" Resolution: 1024x600 Touch Screen: Capacitive (G+G)
• System Specifications: OS System / CPU: Linux 3.4.5 / SPHE8368U RAM / Flash Memory: 128MB / 256MB
• DIN Size: 2 DIN Short Body
• Power Output: Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W MAX Power (4 Ohm): 4CH x 50W Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
• Device Ports: USB 1 (Rear) Playback Formats: CP,AA & Media USB 2 (Rear) Playback Formats: Media USB (Rear) Power - Voltage/Amps: 5V/1.5A Each USB MAX Capability: FAT32_32GB
• Aux Inputs / Outputs: Rear A/V Input (RCA Type - 3pcs): Yes Composite Video Outputs: Yes Reverse Camera Input: Yes (720P AHD Compatible) Second Camera Input: Yes (720P AHD Compatible)
• Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
• Bluetooth: Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP) Bluetooth Version: V4.2+EDR Microphone: Built-in & External Microphone ID3 Tag/Information (Artist, Album, Song): Yes HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
• Tuner: AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3) FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step) AM Frequency Span (KHz): 529-1629KHz (9KHz Step) RDS: Yes FM Antenna Connector Impedance: 50 Ohm FM Tuner Connector: Motorola
• RCA Preamp Outputs: RCA Preamp Output: 2-Pair (Front / Rear) Subwoofer RCA Output: Yes Subwoofer Level Control: Yes Preamp Voltage (1.2,2,4,5,6): 4V p-p
• Tone Control: 8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K) Loudness: Yes LPF - Frequencies (Sub): Yes 8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
• Other Features: Steering Wheel Control: Yes, with Aerpro SWC Adaptor OSD Language: English LED Colour (Buttons / Keys): White
• Accessories: Power Harness: Yes with ISO/3.5mm jack AV-In Cable (RCA with Audio L/R, Video In): Yes Reverse Camera Input (with 12V power supply to the camera): Yes 4.1CH Audio Out Cable: Yes External Microphone: Included

Vehicle Compatibility:

• Holden Colorado (2012 - 2014 RG)
• Holden Colorado 7 (2012 - 2014)
• Isuzu D-Max (2012 - 2020)
• Isuzu MU-X (2013 - 2021)

Kit Inclusions:

• AM9X Multimedia Receiver
• Black Facia Kit
• Steering Wheel Control Interface Harness
• SWC Patch Lead
• Antenna Adaptor
• Camera Retention Adaptor
